Duro® Inertial RTK Pack

6,499.00 USD
Duro® Inertial RTK Pack
6,499.00 USD
View details

Duro® Inertial combines a multi-band, multi-constellation centimeter-accurate GNSS inertial navigation solution (INS) in a ruggedized, compact form factor.

Duro® Inertial is an enclosed dual-frequency GNSS receiver with an integrated inertial measurement unit that allows for continuous centimeter-accurate positioning in the harshest of environments. Designed and built to survive long-term, outdoor deployments, Duro® Inertial combines centimeter-accurate GNSS+INS positioning with military ruggedization at a breakthrough price.


What's Included:

Sensors
1x Duro® Inertial
1x Duro® Standard

Cables and Adapters
2x Power supply with international plug adapters
2x Barrel jack to cigarette lighter adapter
2x SMA jack to TNC plug adapter
2x Mini null modem connectors (DB9 male to DB9 male)
2x Ethernet cable (M12-D-Code male to RJ45 plug)
2x Serial cable (M12-A-Code 8-pin male to DB9 female)
2x Power cable (M12-A-Code 5-pin female to DC power jack)
2x UX-I/O Y-cable (M12-A-Code 17-pin male to DB9 female and DB15 female)
2x Ground cable

Inertial combines centimeter-accurate GNSS+INS positioning with military ruggedization at a breakthrough price.

Antennas
2x TW3972, XF filtering, Tri-Band + L-Band (Pre-Filtered) Calian GNSS LTD Antenna
2x 4-meter SMA (male) to TNC (male) antenna cable (RG58)
Color pattern Yellow
Connectivity technology Ethernet, GPS, Wired
Features Weather resistant
1 / 1
Press & drag to view

Download Specifications

File Size Date Download
Duro® Specification Sheet
0.37Mb/04-21-25
0.37Mb 04-21-25 Download

Designed, Built, and Tested in America.

Centimeter-Level Accuracy

Duro® is a user-friendly, ruggedized GNSS-INS pose device built around the PIksi® Multi dual-frequency RTK GNSS receiver. Built for outdoors, Duro® combines centimeter-level accurate positioning with military-grade durability at a breakthrough price.

Duro® GNSS Receiver

Ruggedized, Global Navigation Satellite System

  • IP67

    IP Rating

  • -40°C to 167°C

    Operating Temperature

  • 0.4m (15in)

    Horizontal Accuracy

  • 0.08m/s (3.1in/s)

    Velocity Accuracy

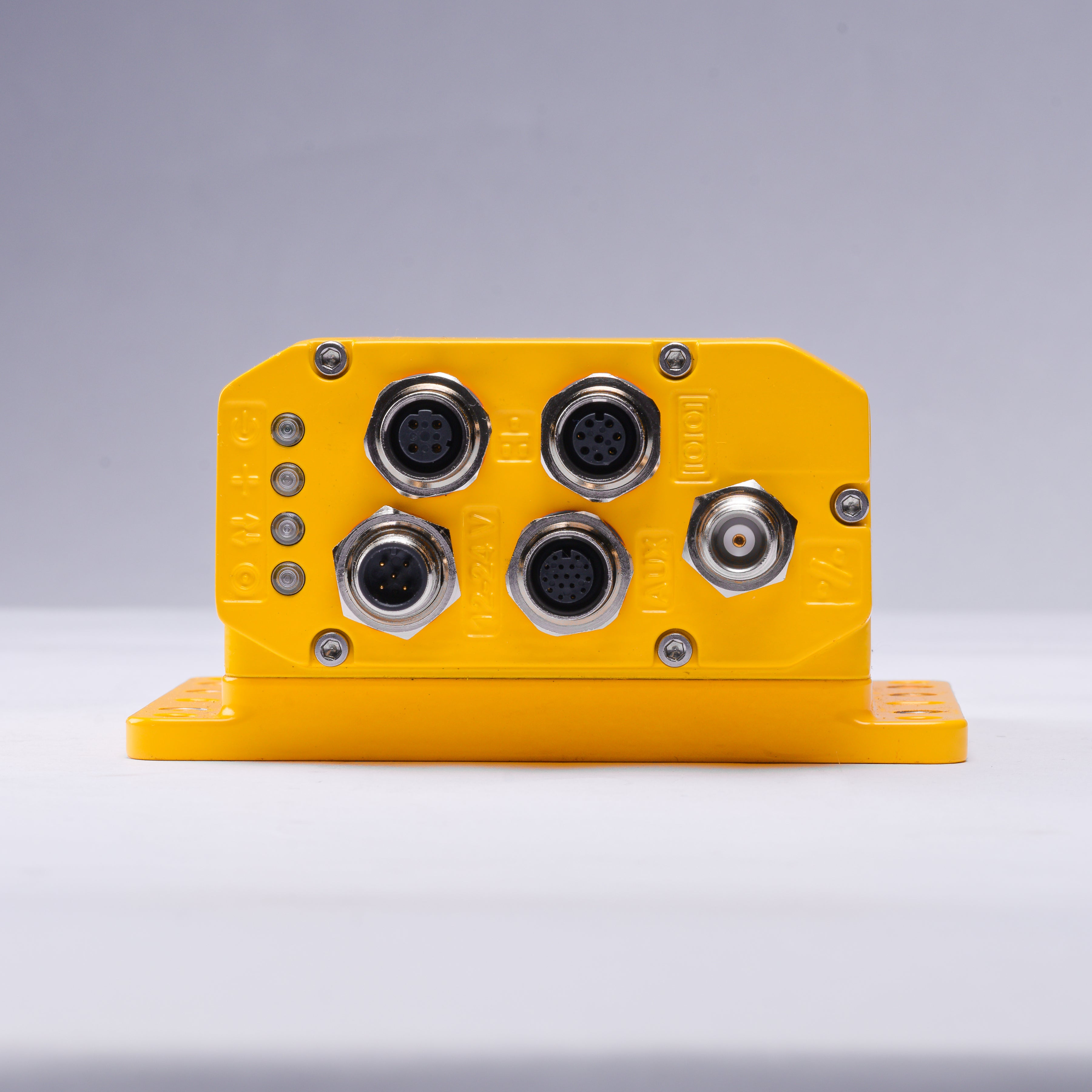

Connections

1 2 3 4 5

1. M12/D/F 4 Pos.

Ethernet Connection

2. M12-A/F 8 Pos.

Serial Connection

3. GNSS Antenna TNC

Antenna Connection

4. M12/A/M 5 Pos.

Power Connection

5. M12/A/F 17 Pos.

Auxilary Connection

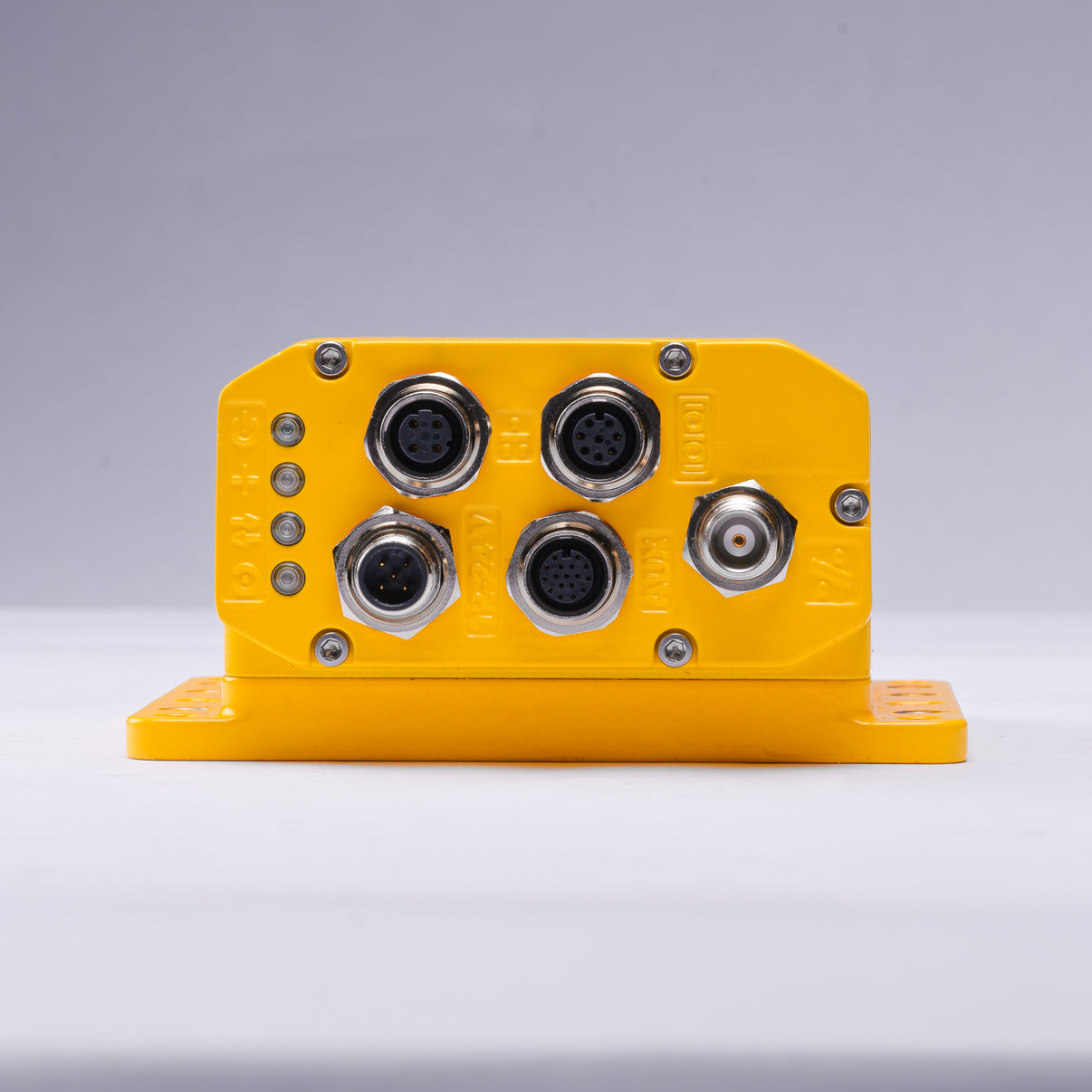

Status Indicators

1 2 3 4

1. Power

Power Status

2. POS

GNSS Solution Availability

3. Link

Incoming Connections | Internet Access

4. Mode

Indicates RTK mode
